MIL-DTL-24640C
HOLES ON 1/8" CENTERS
EQUAL DISTANCE ±1/64"
ALL BURNER HOLES 0.064±0.001"
TOTAL NUMBER OF HOLES - 1344
HOLES ON
MINIMUM SPACED AS SHOWN IN
1/8" CENTERS
SEVEN LONGITUDINAL ROWS.
EQUAL DISTANCE
±1/64"
AREA SHOWN ENLARGED
IMMEDIATELY ABOVE

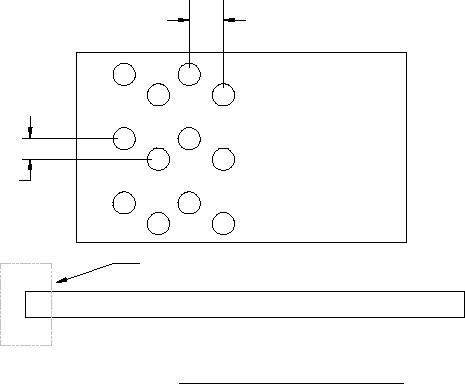

FIGURE 4. Top view of burner for gas flame test.
