MIL-DTL-24640C
MOTOR-DRIVEN
ROTATING DRUM
ARM, PIVOTED ON DRUM AND WEIGHTED
TO ASSURE A 1-POUND +1/16, -0
FORCE ON SPECIMEN
VIA STEEL ROD.
SPECIMEN
RECIPROCATING ROD MOTION OF
AUTOMATIC
3/8±1/16", -0
COUNTER
STEEL ROD WITH
DIA. OF 0.025±0.001"

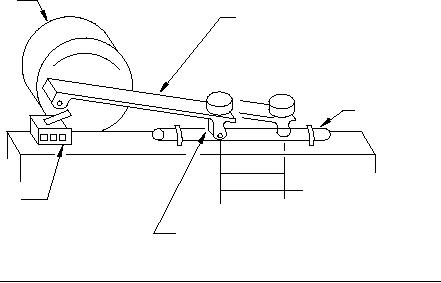

FIGURE 8. Diagram of abrading machine for the permanence of printing (jacket) test.
