INCH-POUND
MIL-DTL-27072/25D
8 August 2006
SUPERSEDING
MIL-DTL-27072/25C
8 December 2000
DETAIL SPECIFICATION SHEET
CABLE, SPECIAL PURPOSE, ELECTRICAL, MULTICONDUCTOR
(2 CONDUCTORS) AND SINGLE SHIELDED,
M27072/25JDDA*
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-27072.

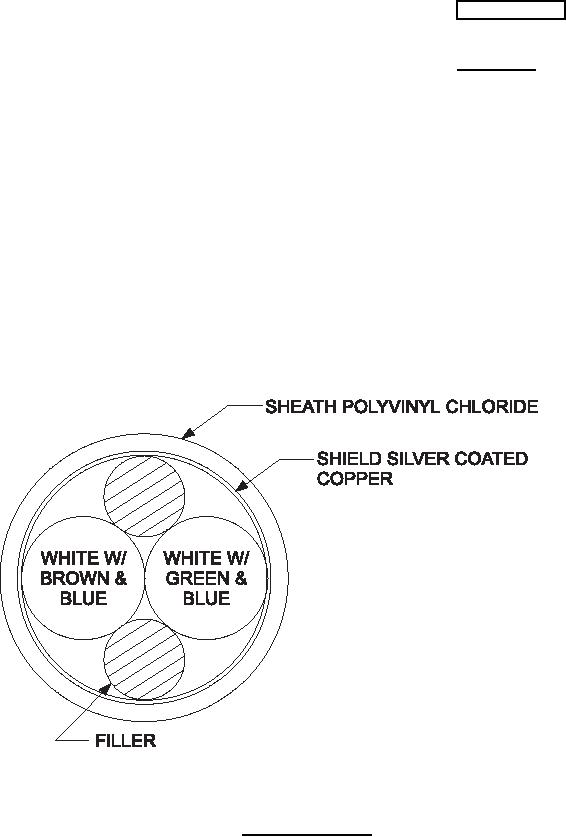

FIGURE 1. Cable configuration.
Note: The Part or Identifying Number (PIN) requires a color code designator (see table I).
AMSC N/A
FSC 6145
