INCH-POUND
MIL-DTL-17/211A
24 September 2009
SUPERSEDING
MIL-C-17/211
29 September 1993
DETAIL SPECIFICATION SHEET
CABLES, RADIO FREQUENCY, FLEXIBLE, COAXIAL, 72 OHMS,
LOW NOISE, LOW SMOKE, M17/211-00001 (UNARMORED), M17/211-00002 (ARMORED),
M17/211-00003 (SPECIFIED INSULATION RESISTANCE, UNARMORED), AND M17/211-00004 (SPECIFIED INSULATION
RESISTANCE, ARMORED)
This specification is approved for use by all Departments
and Agencies of the department of Defense.
The requirements for acquiring the product described herein shall consist
of this specification sheet and MIL-DTL-17.

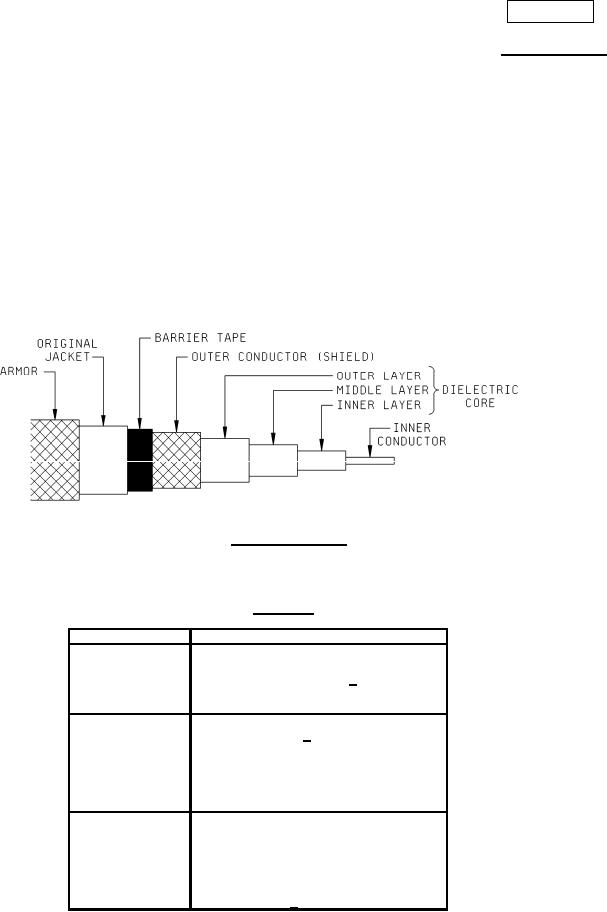

FIGURE 1. General configuration.
TABLE I. Description.
Components
Construction details
Inner conductor
Seven strands of tinned, copper wire. Each
strand .0159 inch diameter.
Overall diameter: .0477 inch + .0020
concentric stranding centered within 10
percent of dielectric diameter.
Dielectric core
Composite of three layers.
Diameter: .295 inch + .007.
Type A-5: Semiconducting polyethylene;
Inner layer
.003 inch nominal thickness.
Type A-1: Solid polyethylene.
Middle layer
Type A-5: Semiconducting polyethylene;
Outer layer
.005 inch nominal thickness.
Outer conductor
Single braid of AWG size 34, tinned copper
Wire.
Diameter: .340 inch, maximum.
Coverage: 97.7% inch, maximum.
Carriers: 24
Ends:
7
Picks/inch: 16.3 +10%
AMSC N/A
FSC 6145
