INCH-POUND
MIL-DTL-17/210A
12 June 2014
SUPERSEDING
MIL-C-17/210
29 September 1993
DETAIL SPECIFICATION SHEET
CABLE, RADIO FREQUENCY, FLEXIBLE, COAXIAL,
50 OHMS, M17/210-00001
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall
consist of this specification sheet and MIL-DTL-17.

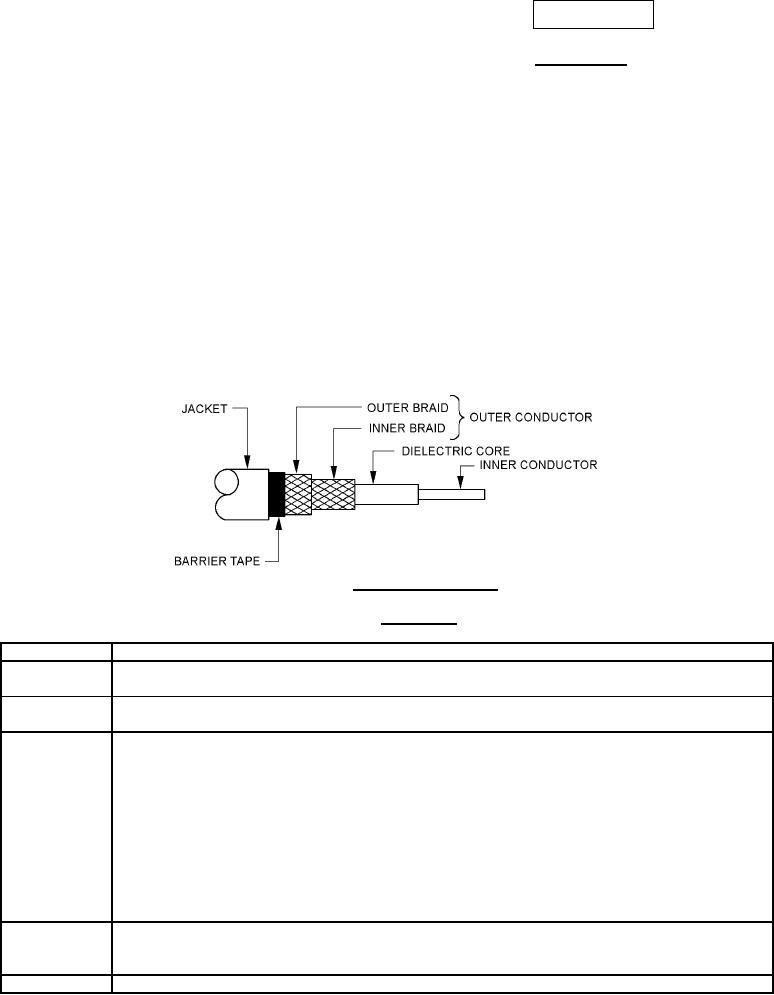

FIGURE 1. General configuration.
TABLE I. Description.
Components
Construction details
Inner
Solid, bare, copper wire. Overall diameter: .195 inch ± .002.
conductor
Dielectric
Type A-1: Solid polyethylene. Overall diameter: .680 inch ± .010.
core
Outer
Double braid of AWG#34, silver-coated copper wire. Diameter: .760 inch maximum.
conductor
Coverage: 93.5%
Carriers: 48
Ends:
10
Picks/inch: 5.2 ± 10%
Coverage: 90.4%, nominal
Carriers:
48
Ends:
10
Picks/inch: 4.1 ± 10%
Barrier tape
A .001 inch thick polyester tape faced with a .002 inch thick layer of aluminum. The tape will be
applied with a 50% lap, minimum. Aluminum face toward the outer conductor. Diameter: .770
inch, maximum.
Jacket
Cross-linked polyolefin. Diameter: .895 inch ± .015.
AMSC N/A
FSC 6145
