INCH-POUND
MIL-DTL-27072/29C
12 March 2012
SUPERSEDING
MIL-DTL-27072/29B
8 December 2000
DETAIL SPECIFICATION SHEET
CABLE, SPECIAL PURPOSE, ELECTRICAL, MULTICONDUCTOR,
(12 CONDUCTORS) AND SINGLE SHIELDED,
M27072/29MACA*
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-27072.
REQUIREMENTS:
SHEATH POLYVINYL CHLORIDE
WHT
SHIELD TINNED COPPER
W/ORN
WHT
WHT
W/BLK
W/GRN
& GRN
WHT
WHT
W/BLK
WHT
W/BLK
W/BLU
& ORN
WHT
WHT
W/RED
W/BRN
WHT
WHT
W/ BLK
W/VIO
& RED
WHT
WHT
W/BLK
W/BLK
& BRN
& BLK
NOTE: The complete Part or Identifying Number (PIN) requires a color code designator (see table I).

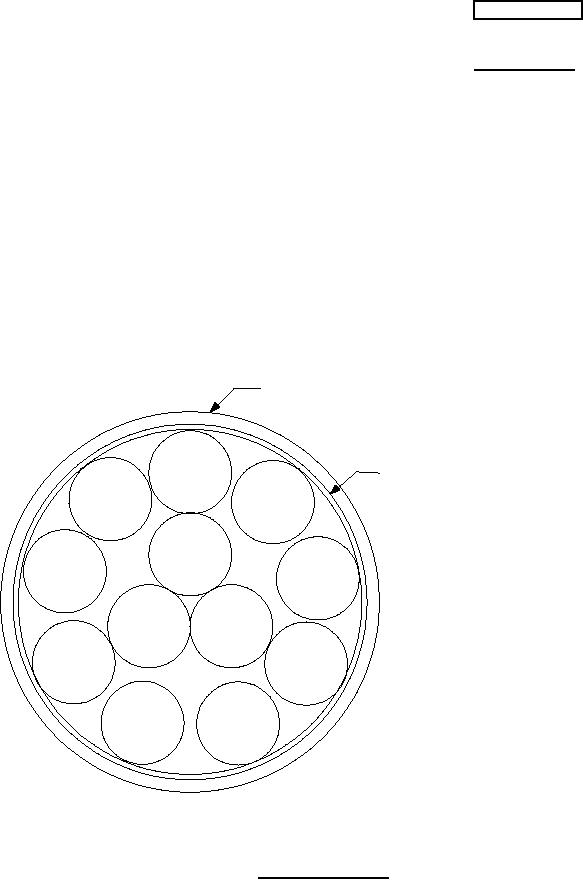

FIGURE 1. Cable configuration.
AMSC N/A
FSC 6145
