INCH - POUND
MIL-DTL-22759/90A
23 February 1998
SUPERSEDING
MIL-W-22759/90
9 September 1994
MILITARY SPECIFICATION SHEET
WIRE, ELECTRICAL, POLYTETRAFLUOROETHYLENE/POLYIMIDE
INSULATED, NORMAL WEIGHT, NICKEL COATED, HIGH STRENGTH OR ULTRA HIGH STRENGTH
COPPER ALLOY.260°C, 600 VOLTS.
This specification sheet has been approved by all departments and agencies within the Department of
Defense; however it is not intended for use in Naval aircraft or Naval Air Systems applications.
The requirements for acquiring the product described herein shall consist of this specification sheet and the issue of
the following specification listed in that issue of the Department of Defense Index of Specifications and Standards
(DoDISS) specified in the solicitation: MIL-W-22759
FP / POLYIMIDE / FP TAPE
CONDUCTOR, STRANDED, SMALL DIAMETER,
FP TAPE
NICKEL COATED HIGH STRENGTH
OR ULTRA HIGH STRENGTH COPPER ALLOY 1/
FP - Fluorocarbon Polymer, modified Polytetrafluoroethylene (PTFE)
1/ Alloy Conductor: The size 26 AWG conductor shall be ultra-high strength copper alloy. The breaking strength
shall be 21.5 lbs. (min.) and the conductor elongation shall be 6.0% (min). All other gauge sizes shall be high
strength copper alloy in accordance with MIL-W-22759

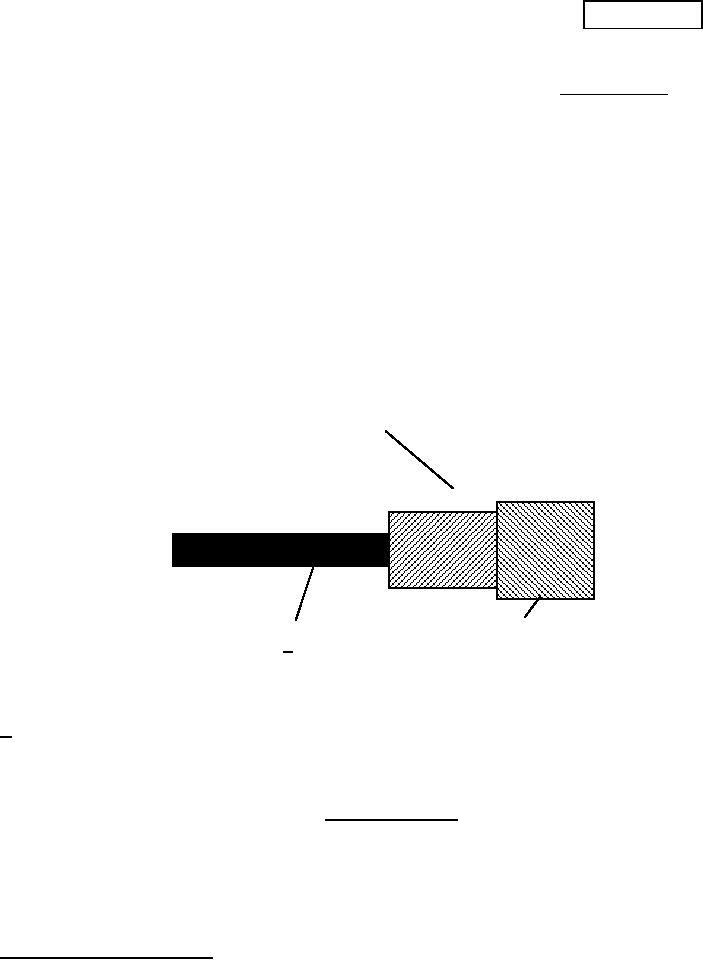

FIGURE 1.
General configuration.
AMSC N/A
FSC 6145
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited
1 of 6
