INCH - POUND
MIL-DTL-22759/81A
23 February 1998
Superseding
MIL-W-22759/81
9 September 1994
MILITARY SPECIFICATION SHEET
WIRE, ELECTRICAL, POLYTETRAFLUOROETHYLENE/POLYIMIDE
INSULATED, LIGHT WEIGHT, SILVER COATED, HIGH STRENGTH OR ULTRA HIGH STRENGTH COPPER
ALLOY, 200°C, 600 VOLTS
This specification sheet has been approved by all departments and agencies within the Department of
Defense; however it is not intended for use in Naval aircraft or Naval Air Systems applications.
The requirements for acquiring the product described herein shall consist of this specification sheet and the issue of the
following specification listed in that issue of the Department of Defense Index of Specifications and Standards
(DoDISS) specified in the solicitation: MIL-W-22759
FP / POLYIMIDE / FP TAPE
CONDUCTOR, STRANDED, SMALL DIAMETER,
FP TAPE
SILVER COATED, HIGH STRENGTH OR
1/
ULTRA HIGH STRENGTH COPPER ALLOY
FP - Fluorocarbon Polymer, modified Polytetrafluoroethylene (PTFE)
1/
Alloy conductor: The size 26 conductor shall be ultra - high strength copper alloy. The breaking strength shall
be 21.5 lbs. (min.) and the conductor elongation 6.0% (min.) All other gauge sizes shall be high strength copper alloy
in accordance with MIL-W-22759.

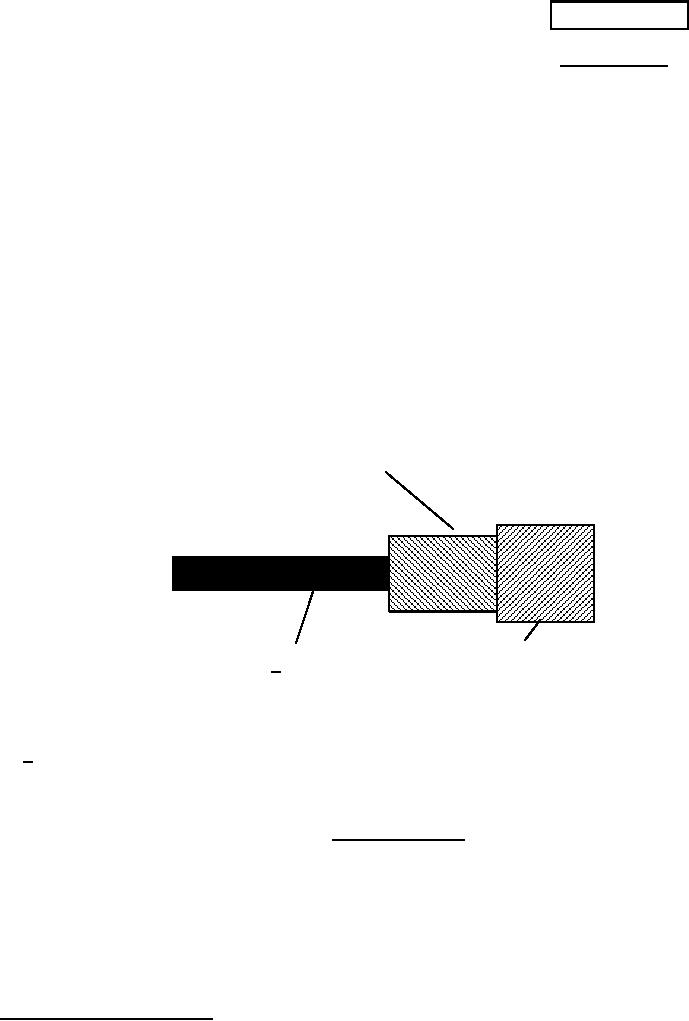

FIGURE 1.
General configuration.
AMSC N/A
1 of 7
FSC 6145
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited
