INCH-POUND
MIL-DTL-17/209A
12 June 2014
SUPERSEDING
MIL-C-17/209
29 September 1993
DETAIL SPECIFICATION SHEET
CABLE, RADIO FREQUENCY, FLEXIBLE, COAXIAL, 75 OHMS,
M17/209-00001, UNARMORED, M17/209-00002, ARMORED.
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall
consist of this specification sheet and MIL-DTL-17.

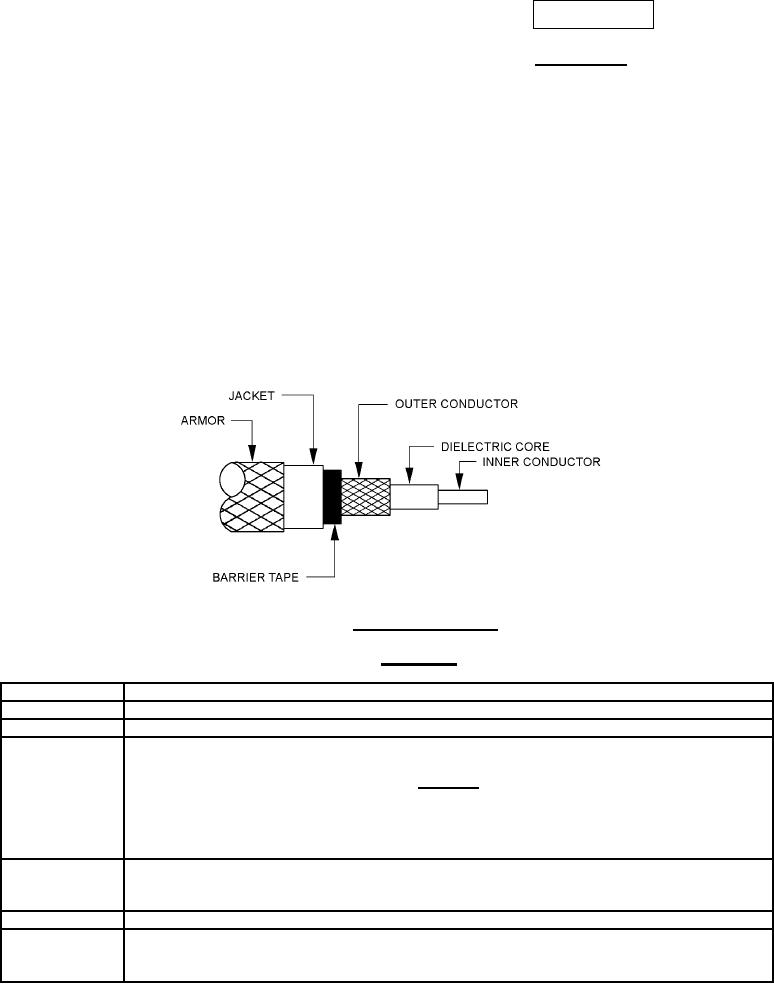

FIGURE 1. General configuration.
TABLE I. Description.
Components
Construction details
Inner conductor
Solid bare, copper wire. Overall diameter: .1045 inch ± .0020.
Dielectric core
Type A-1: Solid polyethylene. Overall diameter: .680 inch ± .010.
Outer
Single braid of AWG#30, bare, copper wire. Diameter: .760 inch maximum.
conductor
Alternate
Coverage: 97.7%
95.8%
Carriers: 48
24
Ends: 7
14
Picks/inch: 5.6 ± 10%
3.1 ± 10%
Barrier tape
A .001 inch thick polyester tape faced with a .002 inch thick layer of aluminum. The tape will be
applied with a 50% lap, minimum. Aluminum face toward the outer conductor. Diameter: .770
inch, maximum.
Jacket
Cross-linked polyolefin. Diameter: .870 inch ± .010.
Armor
Single braid of aluminum-alloy wire. Diameter: .945 inch maximum.
M17/209-00002
only
AMSC N/A
FSC 6145
