INCH-POUND
MIL-DTL-17/206B
12 June 2014
SUPERSEDING
MIL-C-17/206A
22 May 1995
DETAIL SPECIFICATION SHEET
CABLE, RADIO FREQUENCY, FLEXIBLE, COAXIAL,
50 OHMS, M17/206-0018 and M17/206-0030
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall
consist of this specification sheet and MIL-DTL-17.

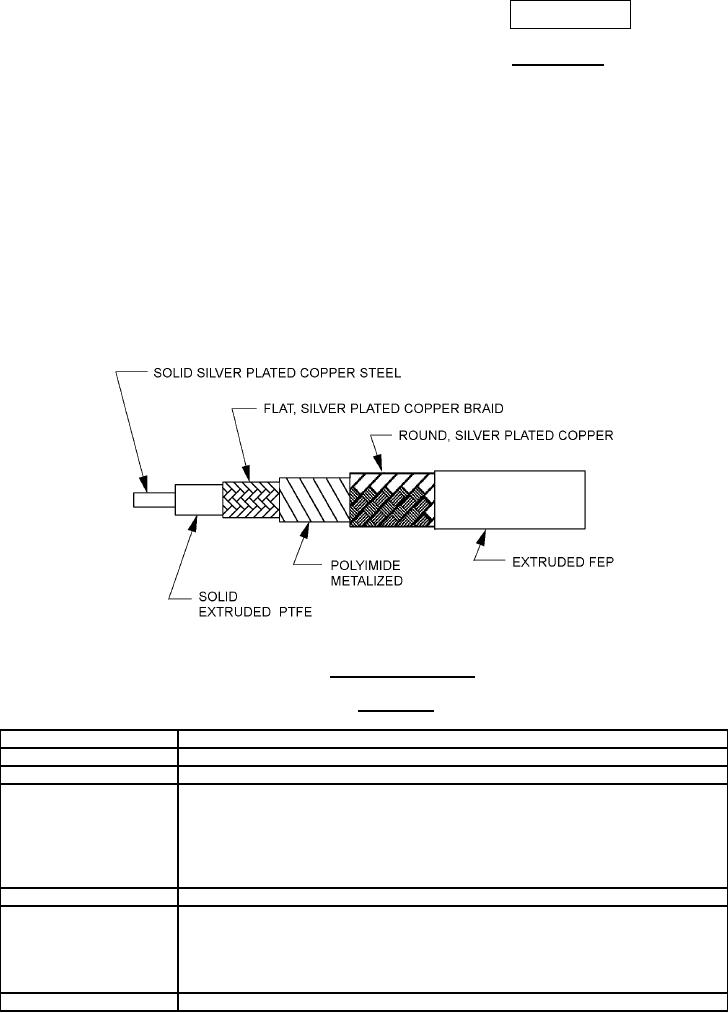

FIGURE 1. General configuration.
TABLE I. Description.
Components
Construction details
Inner conductor
Solid silver coated copper wire. Overall diameter: .0365 inch ± .0003.
Dielectric core
Type F-1: Solid PTFE. Diameter: .117 inch ± .003.
Double braid with metalized polyimide interlayer. Diameter: .153 inch ± .005.
Inner shield helical wrap
Carriers: 16
Ends: N/A
Picks/inch: 18-19
Wire type: Flat, silver plated copper wire. .030 inch ± .003 x .0020 inch ± .0005.
Interlayer
45% overlap minimum, aluminum polyimide.
Outer braid
Carriers: 24
Ends: 4
Picks/inch: 23-25
Wire type: AWG 36, silver-plated copper wire.
Diameter: .153 inch ± .005.
Jacket
Type IX extruded FEP. Diameter: .169 inch ± .005.
AMSC N/A
FSC 6145
