INCH-POUND
MIL-DTL-17/185C
22 May 2014
SUPERSEDING
MIL-C-17/185B
20 February 1991
DETAIL SPECIFICATION SHEET
CABLE, RADIO FREQUENCY, FLEXIBLE COAXIAL,
93 OHMS, M17/185-00001
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall
consist of this specification sheet and MIL-DTL-17.

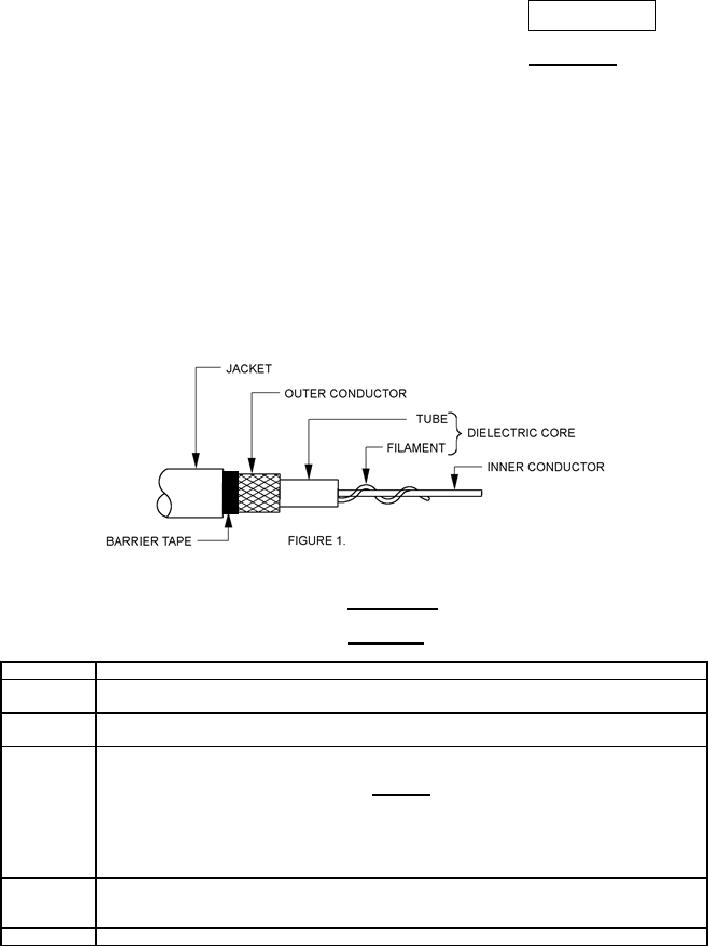

FIGURE 1. Configuration.
TABLE I. Description.
Components
Construction details
Inner
Solid, copper-covered, steel wire. Diameter: .0253 inch ± .0010.
conductor
Dielectric core Type A-3: Air-spaced polyethylene. A monofilament thread, .035 inch approximate diameter
with a lay of 1/2 inch approximate, under an extruded tube. Diameter: .146 inch ± .005.
Outer
Single braid of AWG No. 34, bare copper wire. Diameter: .182 inch maximum.
conductor
Alternate
Coverage: 94.3% nominal
96.5% nominal
Carriers: 16
24
Ends: 7
5
Picks/inch: 8.2 ± 10%
12.3 ± 10%
Barrier tape
A .001 inch thick polyester tape faced with a .002 inch thick layer of aluminum. The tape will be
applied with a 50% lap, aluminum face toward the outer conductor. Diameter: .192 inch
maximum.
Jacket
Cross-linked polyolefin. Diameter: .242 inch ± .007.
AMSC N/A
FSC 6145
