INCH-POUND
MIL-DTL-13486/13D
21 May 2010
SUPERSEDING
MIL-DTL-13486/13C
4 August 2000
DETAIL SPECIFICATION SHEET
CABLE, SPECIAL PURPOSE, ELECTRICAL: LOW-TENSION,
HEAVY-DUTY, MULTIPLE CONDUCTORS, SHIELDED
This specification is approved for use by all Departments and Agencies of the Department of
Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet
and MIL-DTL-13486.
INSULATED CONDUCTORS
3,5,7,9 AND 11 ARE SHIELDED
SHIELD (OUTER)
CLOTH BRAID
(OPTIONAL)
TAPE OR CLOTH BRAID
3
SHEATH
INSULATION
(.060 MINIMUM)
5
1
.080-.115
DIAMETER
8
9
4
7
.135 DIAMETER
.672±.020
MAXIMUM
2
6
11
SEPARATOR
10
12
CONDUCTOR
Inches
mm
NOTE: Dimensions are in inches.
.020
.508
Metric equivalents are given for information only.
.060
1.52
.080
2.032
.115
2.921
.135
3.429
.672
17.068

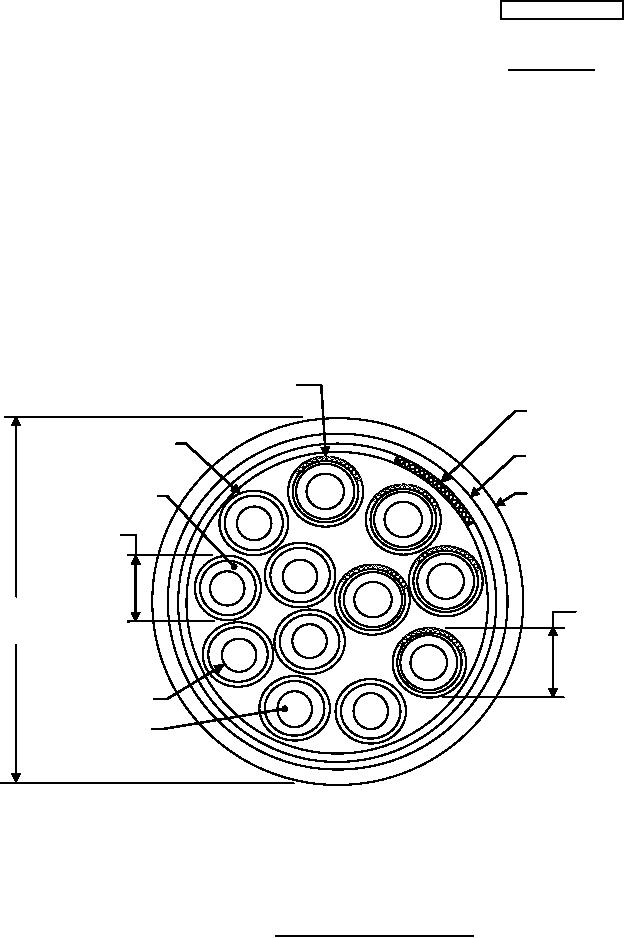

FIGURE 1. Dimensions and configuration.
AMSC N/A
FSC 6145
