INCH-POUND
MIL-DTL-13486/12C
21 May 2010
SUPERSEDING
MIL-DTL-13486/12B
4 August 2000
DETAIL SPECIFICATION SHEET
CABLE, SPECIAL PURPOSE, ELECTRICAL: LOW-TENSION,
HEAVY-DUTY, MULTIPLE CONDUCTORS, UNSHIELDED
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet
and MIL-DTL-13486.
SHEATH
INSULATION
TAPE OR CLOTH BRAID
1
2
CONDUCTOR
9
FILLING COMPOUND
10
8
3
.922±.015
12
11
7
4
.137±.010
SEPARATOR
(ALL INSULATED
6
5
CONDUCTORS)
NOTE: Dimensions are in inches. Metric equivalents are given for information only.
Inches
mm
.010
.254
.015
.380

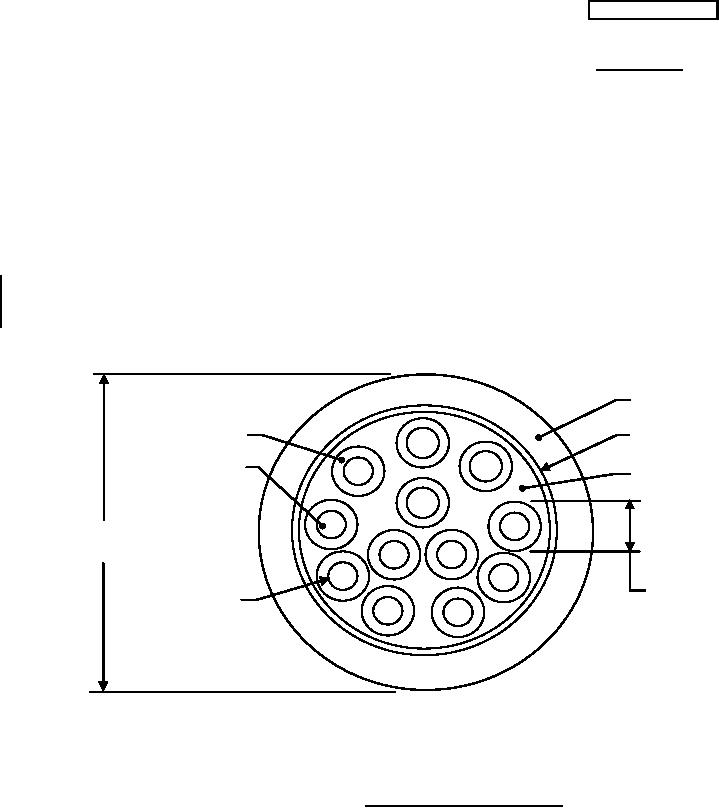

FIGURE 1. Dimensions and configuration.
.137
3.479
.922
25.197
AMSC N/A
FSC 6145
