INCH-POUND
MIL-DTL-13486/1D
21 May 2010
SUPERSEDING
MIL-DTL-13486/1C
4 August 2000
DETAIL SPECIFICATION SHEET
CABLE, SPECIAL PURPOSE, ELECTRICAL: LOW-TENSION,
HEAVY-DUTY, SINGLE CONDUCTOR, UNSHIELDED
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet
and MIL-DTL-13486.
SHEATH
INSULATION
OPEN BRAID (CLOTH/GLASS)
A
CONDUCTOR
SEPARATOR

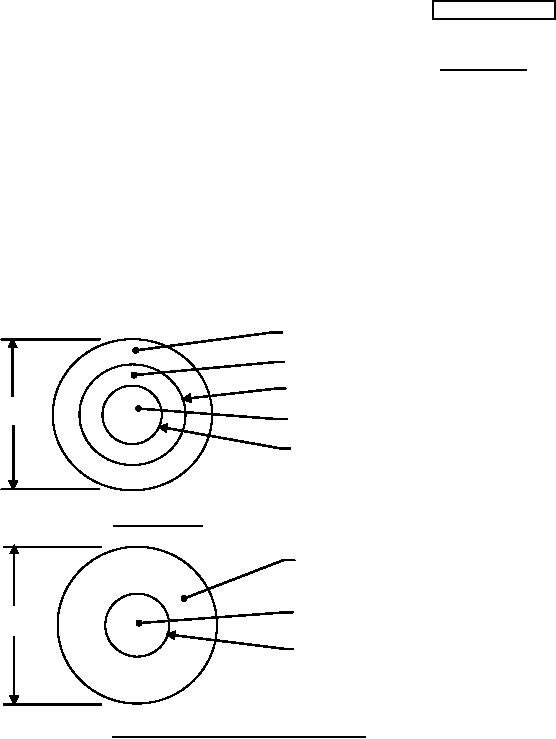

FIGURE 1. Configuration.
COMBINED SHEATH
AND INSULATION
CONDUCTOR
A
SEPARATOR
FIGURE 2. Configuration for optional construction.
Dimensions and configuration. See figure 1 and table I.
Dimensions and configuration (optional construction). See figure 2 and table I.
Insulation and sheath materials (optional construction). Chlorosulfinated polyethylene.
Optional construction. Applicable to M13486/1-1 through M134861-17
AMSC N/A
FSC 6145
