MIL-DTL-17/179B

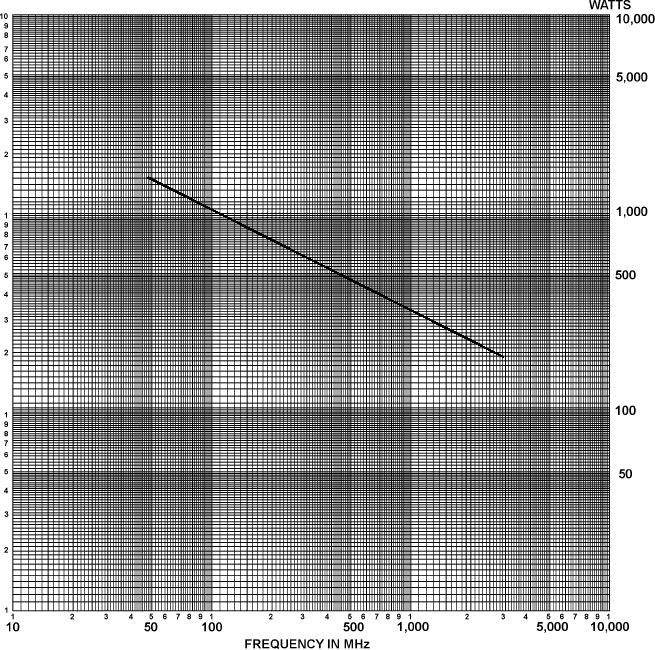

FIGURE 2. Power rating at sea level and 25ºC.
Electrical:
Continuity: Applicable.
Spark test: 2,000 V rms, +10%, -0%.
Voltage withstanding: 2,000 V rms, +10%, -0%.
Note: 3,000 V rms, +10%, -0% applied between the inner and outer conductors with the outer
conductor grounded; 200 V dc minimum applied between the outer conductor and the outer shield
with the outer shield grounded.
4
