INCH-POUND
MIL-DTL-49055/1E
20 April 2011
SUPERSEDING
MIL-DTL-49055/1D
4 August 2000
DETAIL SPECIFICATION SHEET
CABLES, ELECTRICAL,
(FLEXIBLE, FLAT, UNSHIELDED), (ROUND CONDUCTOR),
(WIRE SIZE 26, 7/34 OR 28, 7/36 STRANDING)
Inactive for new design after 16 June 1997.
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet
and MIL-DTL-49055.
REFERENCE EDGE OF CABLE
(SEE NOTE 4)
A
B
.025±.007 TYP
.050±.003 TYP
.007
D
C
MIN
TEAR GROOVE TYP
SEE OPTIONAL
N (NO. OF CONDUCTORS)
CONFIGURATION
Inches
mm
.003
.08
.007
.18
OPTIONAL CONFIGURATION
.025
.64
NOTES:
.050
1.27
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. All non-dimensional pictorial representations are for reference only.
4. Cable marking shall be placed along reference edge of cable.

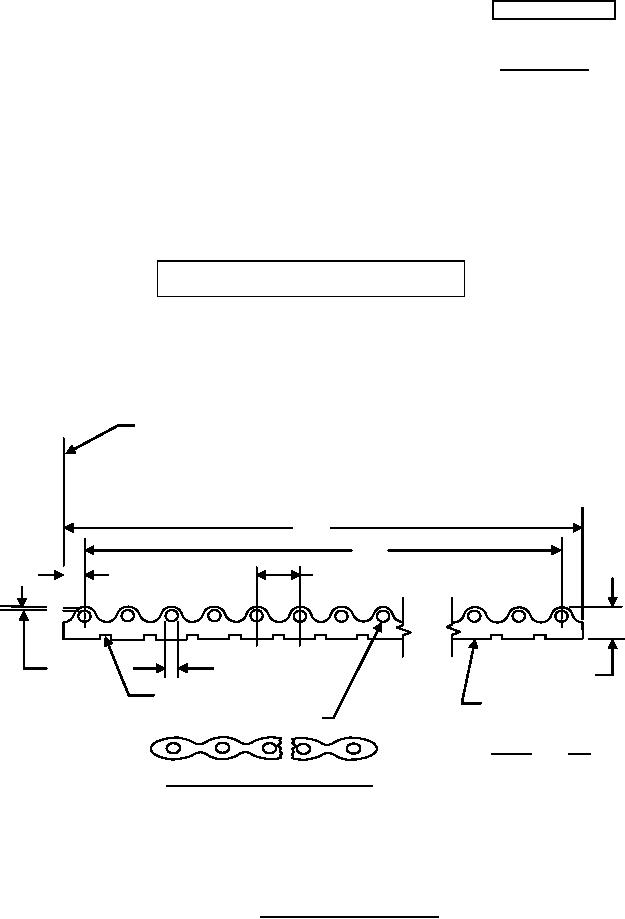

FIGURE 1. Round conductor flat cable.
AMSC N/A
FSC 6145
