INCH-POUND
MIL-DTL-27072/68C
12 March 2012
SUPERSEDING
MIL-DTL-27072/68B
8 December 2000
DETAIL SPECIFICATION SHEET
CABLE, SPECIAL PURPOSE, ELECTRICAL, MULTICONDUCTOR
(21 CONDUCTORS) AND SINGLE SHIELDED,
M27072/68KACA*
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-27072.
REQUIREMENTS:
SHEATH POLYVINYL CHLORIDE
SHIELD TINNED COPPER
RED
/WHITE
BLACK
BLACK
/WHITE
TAPE
GREEN
BLUE
WHITE
/WHITE
/BLACK
BLUE
ORANGE
/WHITE
/GREEN
ORANGE
RED
RED
/BLACK
BLACK
FILLER
/GREEN
/RED
GREEN
GREEN
BLUE
WHITE
/BLACK
/RED
/RED
ORANGE
/RED
RED
ORANGE
/BLACK
WHITE
BLUE
/BLACK
NOTE: The complete Part or Identifying Number (PIN) requires a color code designator (see table I).

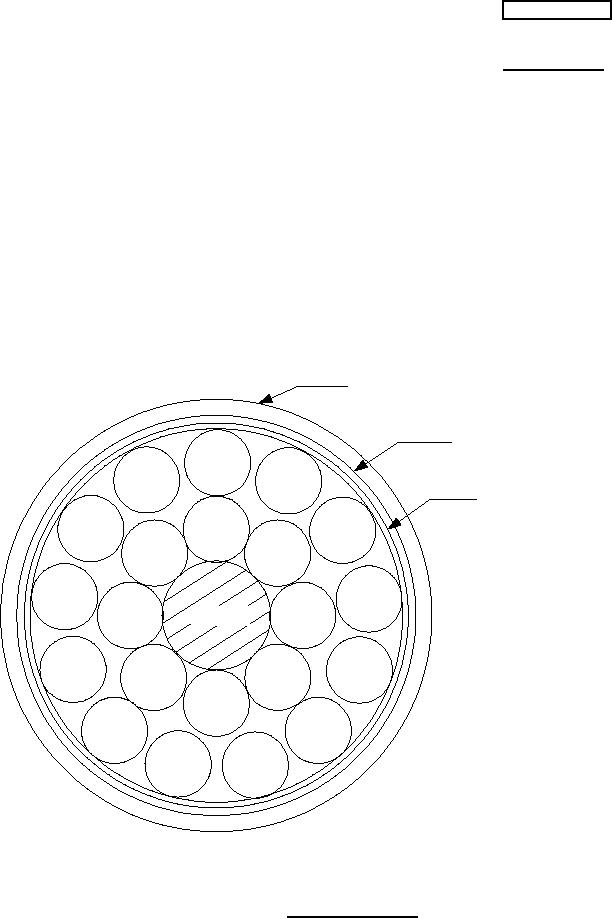

FIGURE 1. Cable configuration.
AMSC N/A
FSC 6145
