INCH - POUND
MIL-DTL-22759/84A
23 February 1998
SUPERSEDING
MIL-W-22759/84
9 September 1994
MILITARY SPECIFICATION SHEET
WIRE, ELECTRICAL, POLYTETRAFLUOROETHYLENE/POLYIMIDE
INSULATED, NORMAL WEIGHT, NICKEL COATED, COPPER CONDUCTOR.
260°C, 600 - VOLT
This specification sheet has been approved by all departments and agencies within the Department of
Defense; however it is not intended for use in Naval aircraft or Naval Air Systems applications.
The requirements for acquiring the product described herein shall consist of this specification sheet and the issue of
the following specification listed in that issue of the Department of Defense Index of Specifications and Standards
(DoDISS) specified in the solicitation: MIL-W-22759
FP / POLYIMIDE / FP TAPE
FP TAPE
FP TAPE
GENERAL PURPOSE STRANDED,
NICKEL COATED COPPER CONDUCTOR
AROMATIC POLYAMIDE BRAID
TREATED TO PREVENT FRAYING 1/
FP - Fluorocarbon Polymer, modified Polytetrafluoroethylene (PTFE)
1/ Braid: Bright aromatic polyamide yarn, 200 Denier, 100 filaments, tightly formed, uniform in appearance,
treated with a clear finisher coating. The finisher coating shall be compatible with the temperature rating and
performance requirements of the insulated wire.

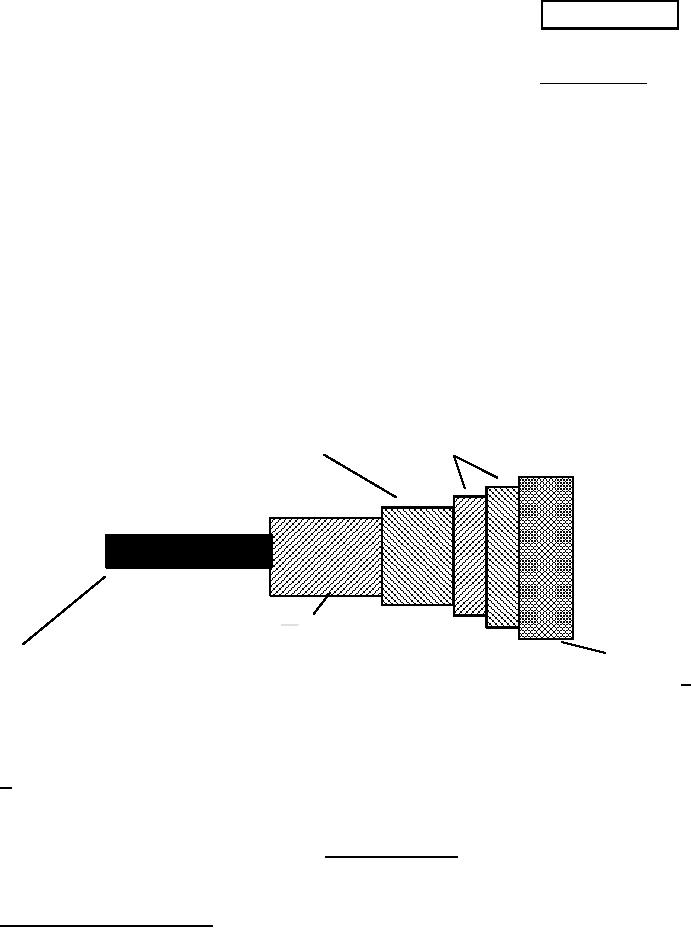

FIGURE 1.
General configuration.
