INCH-POUND
MIL-DTL-17/208A
12 June 2014
SUPERSEDING
MIL-C-17/208
29 September 1993
DETAIL SPECIFICATION SHEET
CABLE, RADIO FREQUENCY, FLEXIBLE, COAXIAL, 185 OHMS,
M17/208-00001
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall
consist of this specification sheet and MIL-DTL-17.

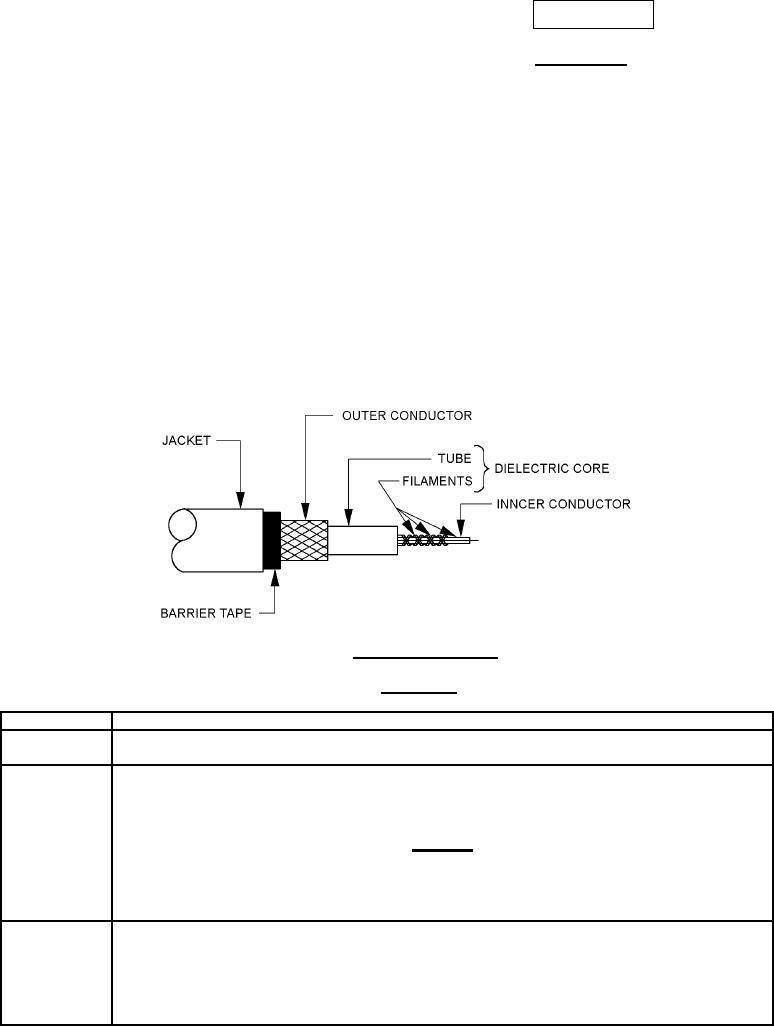

FIGURE 1. General configuration.
TABLE I. Description.
Components
Construction details
Inner
Solid silver coated copper wire. Overall diameter: .007 inch ± .0010.
conductor
Dielectric
Type A-3: Air-spaced polyethylene. A braid of 24 polyethylene filament threads, .020 inch
core
approximate diameter each, with 2 picks/inch approximate, under an extruded tube. Overall
diameter: .285 inch ± .010.
Alternate
Type A-3: Air-spaced polyethylene: A braid of 8 polyethylene filament threads, .035 inch
approximate diameter each, with 2 picks/inch approximate, under an extruded tube. Overall
diameter: .285 inch ± .010.
Outer
Single braid of AWG#34, bare, copper wire. Diameter: 340 inch ± .340.
conductor
Coverage: 91.1%
Carriers: 24
Ends: 8
Picks/inch: 7.0 ± 10%
AMSC N/A
FSC 6145
