INCH-POUND
MIL-DTL-17/205A
12 June 2014
SUPERSEDING
MIL-C-17/205
25 February 1994
DETAIL SPECIFICATION SHEET
CABLE, RADIO FREQUENCY, FLEXIBLE, COAXIAL,
50 OHMS, M17/205-0018 and M17/205-0050
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall
consist of this specification sheet and MIL-DTL-17.

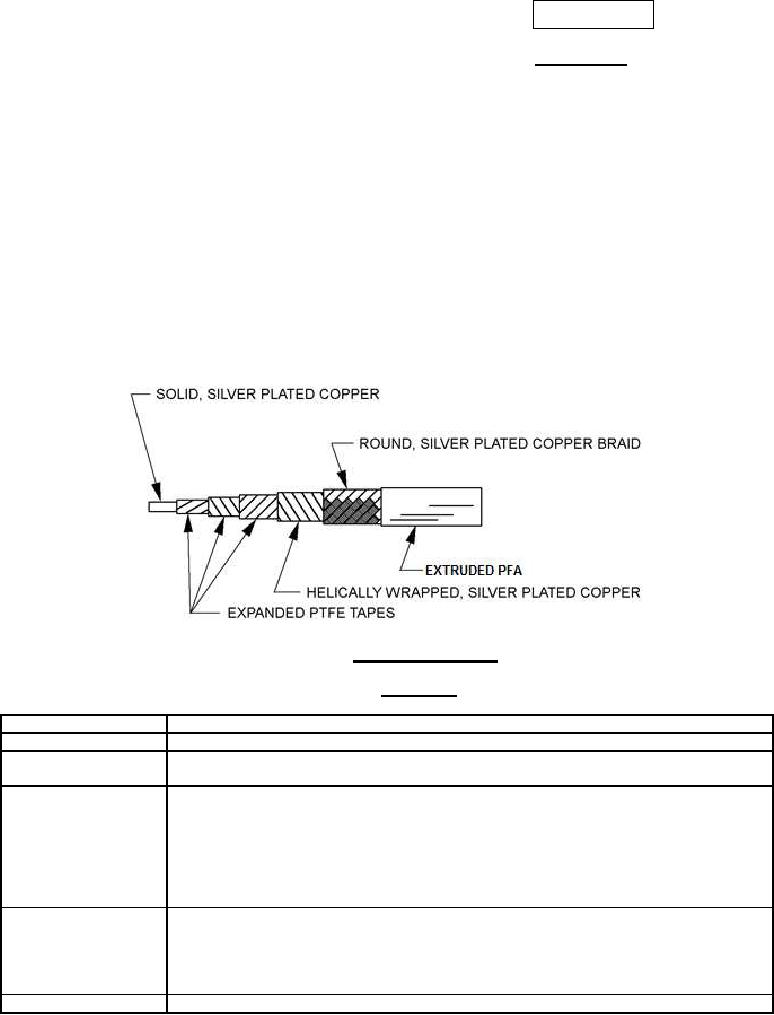

FIGURE 1. General configuration.
TABLE I. Description.
Components
Construction details
Inner conductor
Solid silver coated copper wire. Overall diameter: .0298 inch ± .0002.
Dielectric core
Type F-6: Expanded PTFE tape. Diameter: .083 inch ± .003. 50% overlap minimum,
66% nominal.
Outer conductor
Double shield: Helical wrap plus braid. Diameter: .108 inch ± .002.
Inner shield helical
Carriers: N/A
wrap
Ends: N/A
Picks/inch: N/A
Wire type: Flat, silver plated copper wire. .060 inch ± .002 x .002 inch ± .003. 45%
overlap minimum.
Outer braid
Carriers: 16
Ends: 5
Picks/inch: 25 ± 2
Wire type: AWG 38, silver-plated.
Diameter: .108 ± .002, coverage 90%, minimum.
Jacket
Type XIII extruded PFA. Diameter: .120 inch ± .003.
AMSC N/A
FSC 6145
