MIL-DTL-17/196C

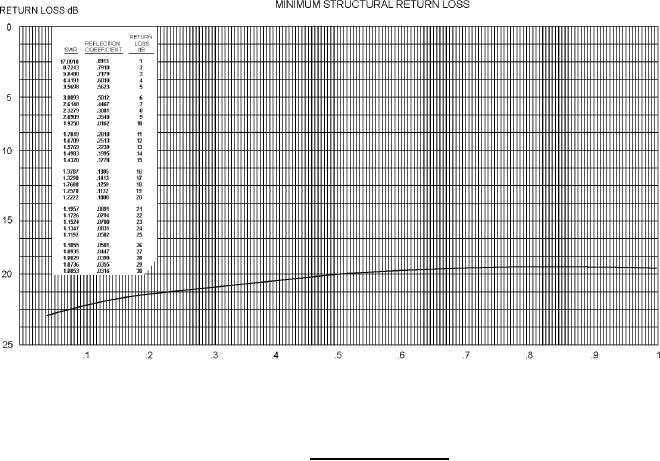

FIGURE 3. Structural return loss.
Electrical:
Spark test: 2,000 V rms, minimum.
Voltage withstanding: 4,500 V rms, minimum.
Corona extinction voltage: 1,500 V rms, minimum.
Characteristic impedance: 50 ± 2 ohms.
Attenuation: See figure 2.
Structural return loss: See figure 3.
Capacitance: 32.2 pF per foot, maximum.
Part or Identifying Number (PIN): M17/196-00001.
Referenced documents. This document references MIL-DTL-17.
5
