INCH-POUND
MIL-DTL-17/193C
12 June 2014
SUPERSEDING
MIL-C-17/193B
20 February 1991
DETAIL SPECIFICATION SHEET
CABLE, RADIO FREQUENCY, FLEXIBLE, COAXIAL,
50 OHMS, M17/193-00001 UNARMORED, M17/193-00002 ARMORED
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall
consist of this specification sheet and MIL-DTL-17.

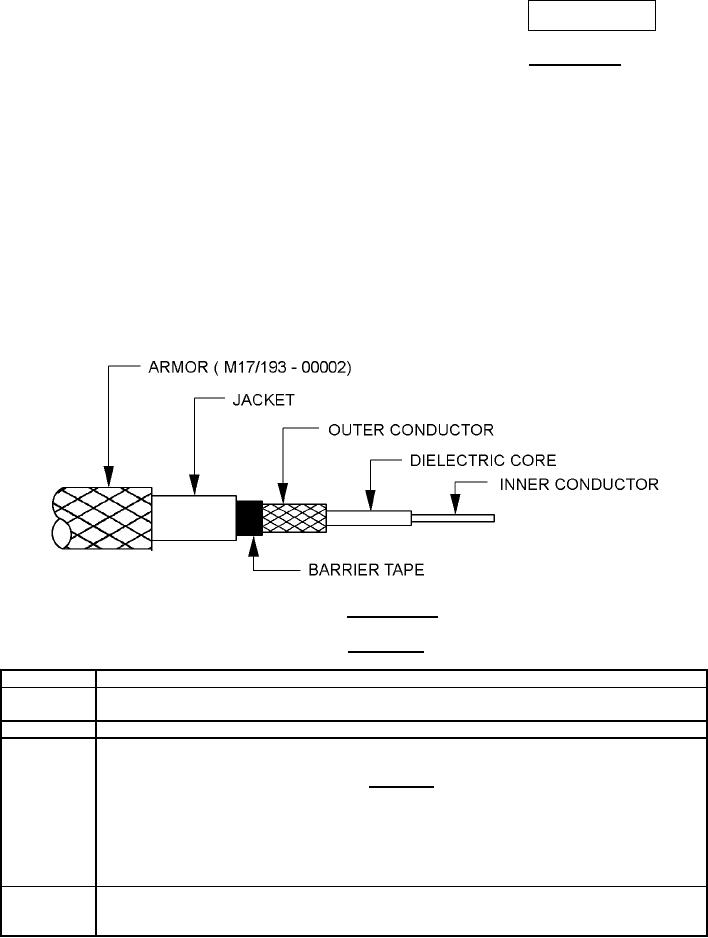

FIGURE 1. Configuration.
TABLE I. Description.
Components
Construction details
Inner
Solid bare copper wire. Diameter: .195 inch ± .002.
conductor
Dielectric core Type A-1: Solid polyethylene. Diameter: .680 inch ± .010.
Outer
Single braid of AWG No. 30, bare copper wire. Diameter: .740 inch maximum.
conductor
Alternates
Coverage: 97.7% nominal
97.8% nominal
97.2% nominal
Carriers: 24
36
48
Inner
Ends: 14
9
7
Picks/inch: 3.1 ± 10%
4.0 ± 10%
5.6 ± 10%
Barrier tape
A .001 inch thick polyester tape faced with a .002 inch thick layer of aluminum. The tape will be
applied with a 50% lap, aluminum face toward the outer conductor. Diameter: .752 inch
maximum.
AMSC N/A
FSC 6145
