INCH-POUND
MIL-DTL-17/154A
26 July 2006
SUPERSEDING
MIL-DTL-17/154
9 October 1979
DETAIL SPECIFICATION SHEET
CABLES, RADIO FREQUENCY, COAXIAL, 0.034 INCH DIAMETER,
SEMRIGID, 50 OHMS, M17/154-0000I and M17/154-00002
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
MIL-DTL-17.
Inches
mm
.0005
0.013
.001
0.03
.002
0.05
.008
0.20
.026
0.66
.034
0.86
* Metric conversions for table I

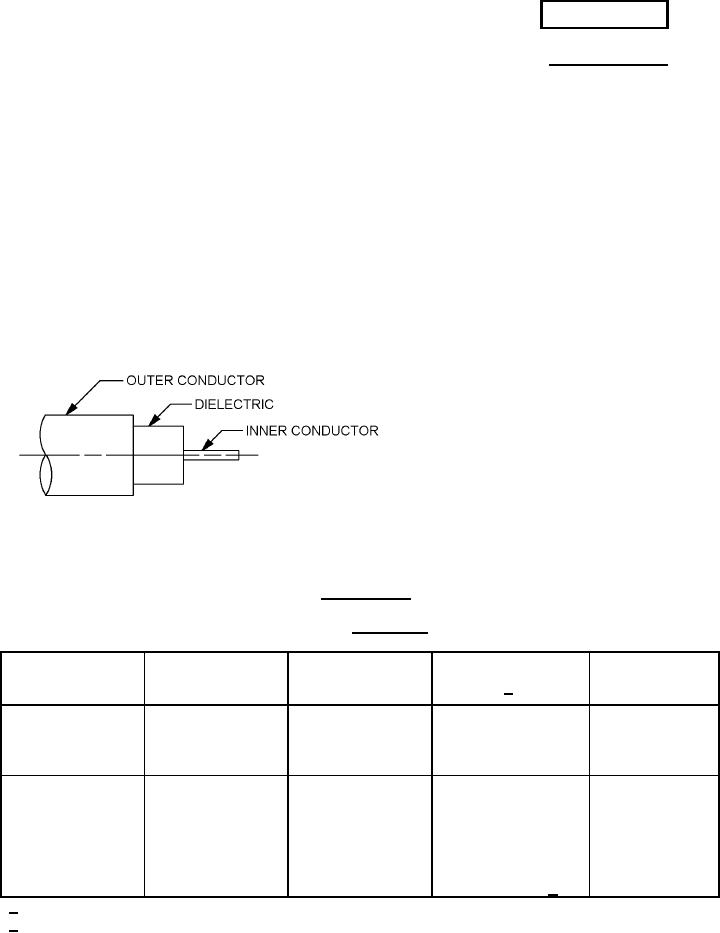

FIGURE 1. Configuration.
TABLE I. Description.
Weight pounds,
Part or Identifying
Outer conductor
Inner conductor
Dielectric core
per 1,000 feet
Number
1/
(maximum)
(PIN)
Solid, silver-coated
Seamless copper
Type F-1
copper clad steel
tubing, diameter
diameter .026 inch
2.6
M17/154-0000l
diameter
.034 ± .001
± .001
.008 inch ± .0005
Seamless copper
tubing tin-plated in
accordance with
M17/154-00002
Same as above
Same as above
ASTM B545, .0003
2.8
inch thick, minimum.
diameter .034 inch
+.002, -.001 2/
1/ Use of recrystalized welded outer conductor is optional.
2/ The outer diameter dimension is after plating.
AMSC N/A
FSC 6145
