INCH-POUND
MIL-DTL-17/151A
26 July 2006
SUPERSEDING
MIL-C-17/151
9 October 1979
DETAIL SPECIFICATION SHEET
CABLES, RADIO FREQUENCY, COAXIAL, 0.047 INCH DIAMETER, SEMIRIGID,
50 OHMS, M17/151-00001 and M17/151-00002
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of
this specification sheet and MIL-DTL-17.
Inches
mm
.0005
0.013
.001
0.03
.002
0.05
.0113
0.287
.037
0.94
.047
1.19
* Metric conversions for table I

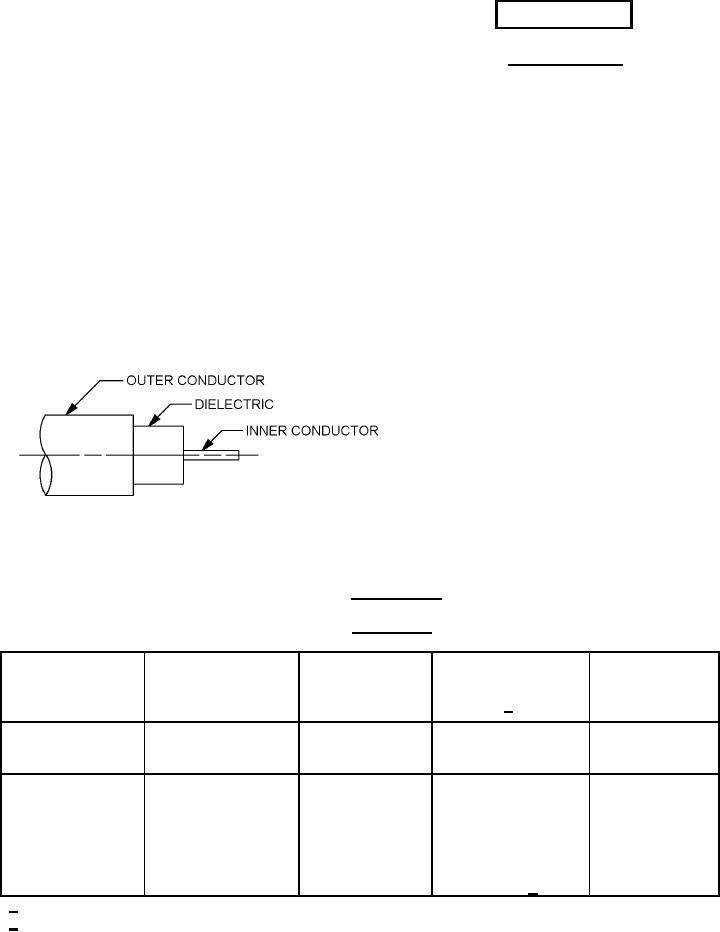

FIGURE 1. Configuration.
TABLE I. Description.
Weight,
Outer
pounds per
Part or Identifying
Inner
Dielectric
Conductor
1,000 feet
Number (PIN)
conductor
core
1/
(maximum)
Solid, silver-coated,
Type F-1
Seamless copper
M17/151-00001
4.5
copper clad steel
diameter
tubing, diameter
.0113 inch ±.0005
.037 inch ±.00l
.047 ± .001 inch
Seamless copper
tubing tin plated in
accordance with
ASTM B545, .0003
M17/151-00002
Same as above
Same as above
4.8
inch thick, minimum.
diameter .047 inch
+.002, -.001 2/
1/ Use of recrystalized welded outer conductor is optional.
2/ The outer diameter is after plating.
AMSC N/A
FSC 6145
