MIL-DTL-13486 Cables, Special Purpose, Electrical: Low-Tension, Heavy-Duty, Single Conductor And Multiple Conductor, Shielded And Unshielded, General Specification ForThis specification covers two types \(shielded and unshielded\) of insulated, heavy-duty, single and multiconductor, electrical cables for use in low-tension circuits \(see 6.1\).

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13


MIL-DTL-13486E
CABLE SAMPLE
6-INCH
TEST AREA
BLUE FLAME
2.0
INNER CONE
.75
FLAME SPREADER
BUNSEN
Inches
mm
BURNER
.75
19
2
50.8
6
152
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for information only.
.

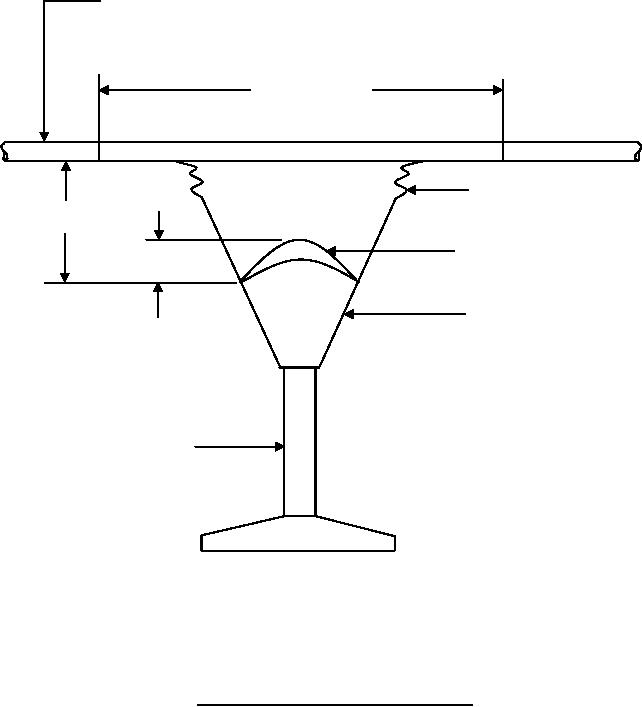

FIGURE 1. Laboratory setup for the flammability test.
17
