INCH-POUND
MIL-DTL-13486/9C
21 May 2010
SUPERSEDING
MIL-DTL-13486/9B
4 August 2000
DETAIL SPECIFICATION SHEET
CABLE, SPECIAL PURPOSE, ELECTRICAL: LOW-TENSION,
HEAVY-DUTY, MULTIPLE CONDUCTORS, UNSHIELDED
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet
and MIL-DTL-13486.
SHEATH
TAPE
INSULATION
1
CONDUCTOR
FILLING COMPOUND
7
5
2
.610±.015
3
4
SEPARATOR
.137±.010
(ALL INSULATED
CONDUCTORS)
NOTE: Dimensions are in inches.
Inches
mm
Metric equivalents are given for information only.
.010
.254
.015
.380
.137
3.479
.610
15.49

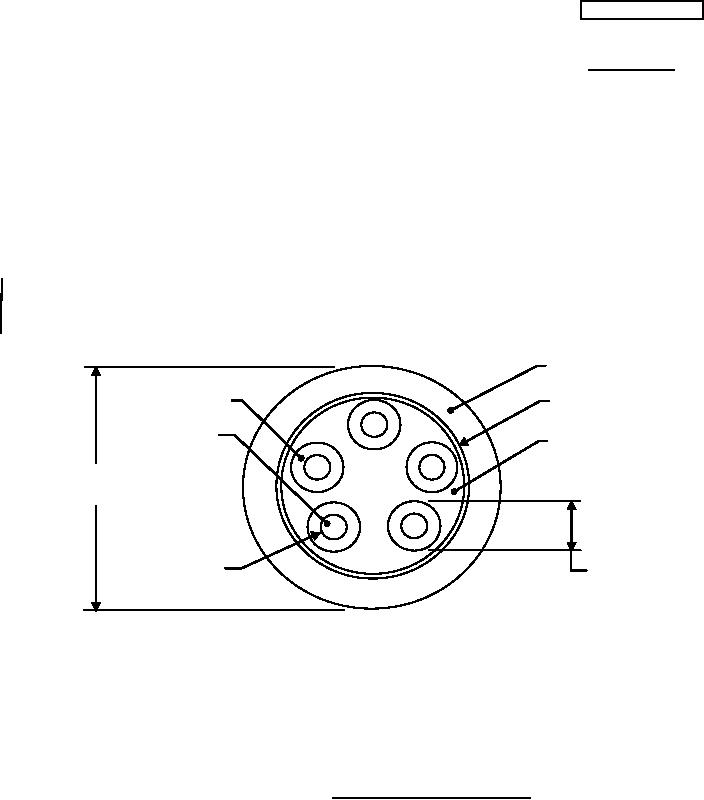

FIGURE 1. Dimensions and configuration.
Dimensions and configuration. See figure 1.
Conductor size. All conductors shall be size 14. See "Construction requirements for conductors" as
specified in MIL-DTL-13486.
Insulated conductors, identification. See table I.
