INCH-POUND
MIL-DTL-13486/5C
21 May 2010
SUPERSEDING
MIL-DTL-13486/5B
4 August 2000
DETAIL SPECIFICATION SHEET
CABLE, SPECIAL PURPOSE, ELECTRICAL: LOW-TENSION,
HEAVY-DUTY, MULTIPLE CONDUCTORS, UNSHIELDED
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet
and MIL-DTL-13486.
INSULATION
CONDUCTOR
SHEATH
SEPARATOR
.235±.015
(5.969+.381)
(BOTH INSULATED
.085 MINIMUM
CONDUCTORS)
(2.159)
NOTE: Dimensions are in inches. Metric equivalents are given
for information only.

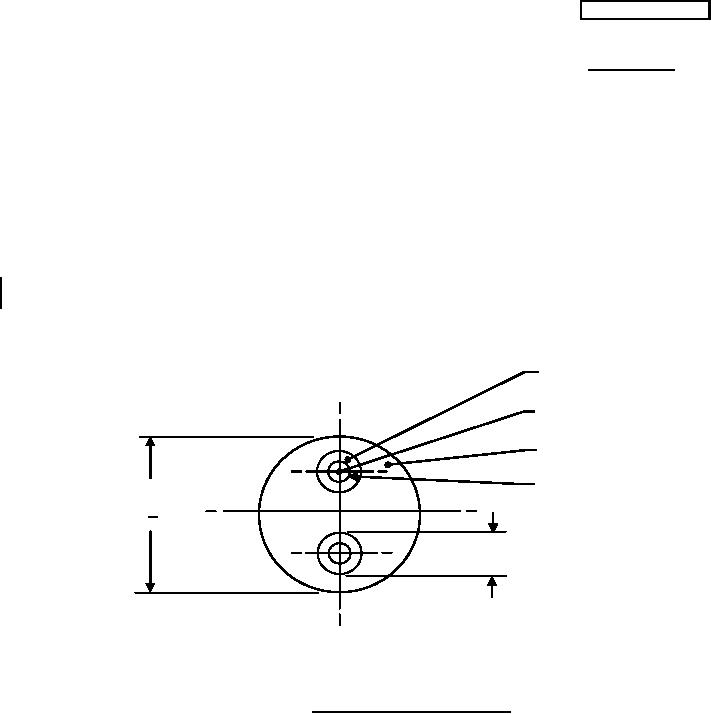

FIGURE 1. Dimensions and configuration.
Dimensions and configuration. See figure 1.
Conductor size. Both conductors shall be size 18. See "Construction requirements for conductors" as
specified in MIL-DTL-13486.
Insulated conductors, identification. One insulated conductor shall be solid black in color; the other
insulated conductor shall be solid white.
Sheath, thickness and configuration. Sheath thickness shall be not less than .020 inch at any point along
the cable periphery.
Part or Identifying Number (PIN): M13486/5-1
Former PIN: 7732849
AMSC N/A
FSC 6145
