INCH-POUND
MIL-DTL-13486/2D
21 May 2010
SUPERSEDING
MIL-DTL-13486/2C
4 August 2000
DETAIL SPECIFICATION SHEET
CABLE, SPECIAL PURPOSE, ELECTRICAL: LOW-TENSION,
HEAVY-DUTY, SINGLE CONDUCTOR, SHIELDED
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet
and MIL-DTL-13486.
SHIELD
SHEATH
INSULATION
A
CONDUCTOR
OPEN BRAID (CLOTH)
SEPARATOR

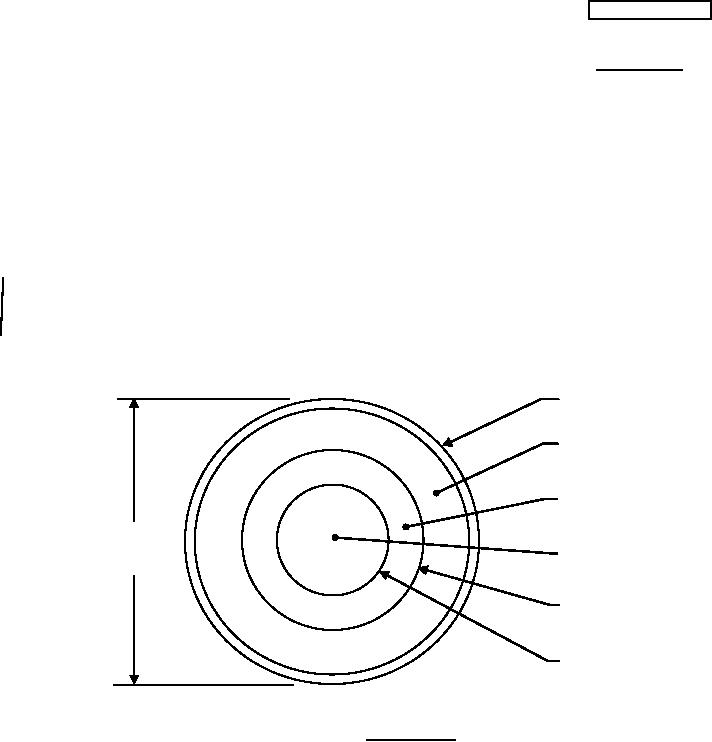

FIGURE 1. Configuration.
Dimensions and configuration. See figure 1 and table I.
Shielding material. Copper braid.
Braid, strands. .0063 inch in diameter, tinned copper.
Braid coverage. 90%.
AMSC N/A
FSC 6145
