INCH-POUND
MIL-DTL-13486/10C
21 May 2010
SUPERSEDING
MIL-DTL-13486/10B
4 August 2000
DETAIL SPECIFICATION SHEET
CABLE, SPECIAL PURPOSE, ELECTRICAL: LOW-TENSION,
HEAVY-DUTY, MULTIPLE CONDUCTORS, UNSHIELDED
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet
and MIL-DTL-13486.
SHEATH
INSULATION
TAPE OR CLOTH BRAID
1
CONDUCTOR
FILLING COMPOUND
2
7
8
3
6
.735±.015
4
5
.137±.010
SEPARATOR
(ALL INSULATED
CONDUCTORS)
Inches
mm
.010
.254
.015
.380
.137
3.479
.735
18.669
NOTE: Dimensions are in inches. Metric equivalents are
given for information only.

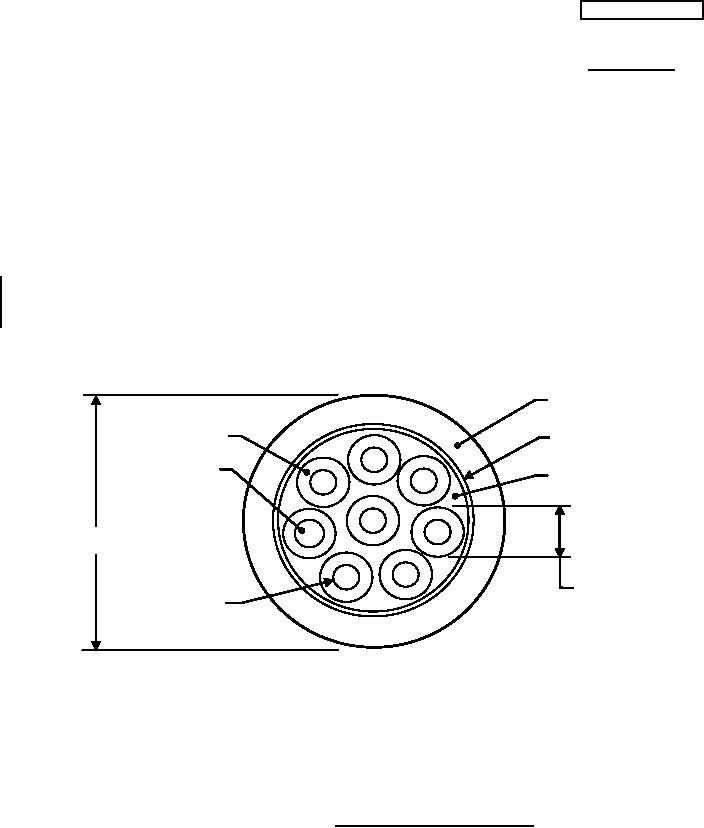

FIGURE 1. Dimensions and configuration.
Dimensions and configuration. See figure 1.
Conductor size. All conductors shall be size 14. See "Construction requirements for conductors" as
specified in MIL-DTL-13486.
